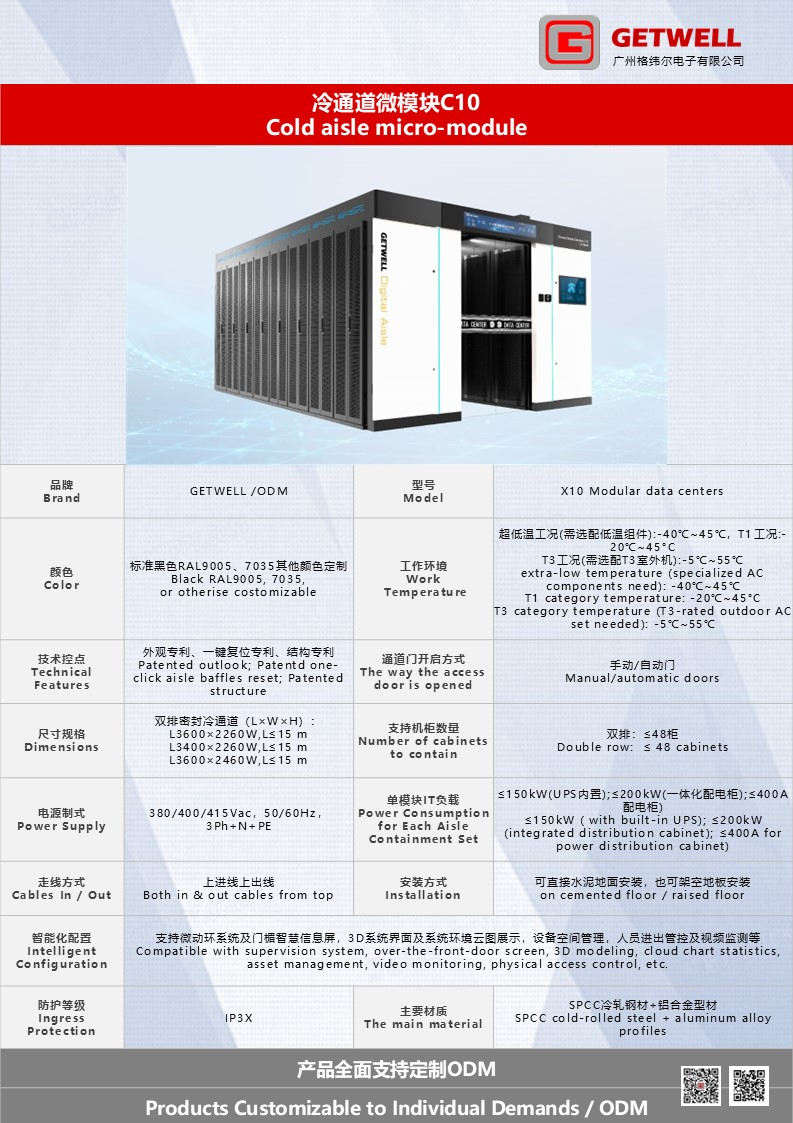

Advantages of the C10 modular cold aisle

Our application solutions are versatile and flexible to suit the design parameters of each project.

1. Through the revolutionary horizontal air supply and nearby refrigeration air supply mode, it fully supports high-density cooling, and supports the maximum cooling load of 20KW in a single cabinet. The innovation of the air supply mode, combined with the temperature and humidity decoupling design and the cold aisle closure design, has increased the PUE from the traditional 2.2 to less than 1. 4.

2. The cold aisle built by the traditional downward air supply mode supports the maximum cooling load of 10KW for a single cabinet. The enclosed design of the channel and the cabinet space are closed by blind plates to ensure that the cold air flow will not be lost due to the lack of installed equipment, and the overall PUE value is increased from 2.5 to below 1.3 in the traditional IDC, which is more in line with the adoption of large-scale IDC projects.

(The above two sets of solutions take 100KVA IT load as an example, our solution can save about 620,000 kWh of electricity per year, with a power saving rate of 32%, which is equivalent to saving 620,000 yuan).

To meet the needs of power supply and distribution, the system is stable and reliable

The intelligent GPM8 precision power distribution cabinet adopts a dual-bus power distribution design, and the cabinet realizes three-phase balance inside; The power distribution module design is simple and reliable to install, and the operation is simpler. PDM integration, LCD multi-function monitoring display, screen touch operation, can locally control and display all acquisition parameters and realize RS485 communication integration.

High standardization, flexible deployment, professional, efficient and fast service

All subsystem components are standardized prefabricated and factory tested to ensure high reliability and can be flexibly deployed according to the actual situation. The installation and service are completed by an engineering team with rich experience in the construction of large-scale data centers, ensuring that the overall design, monitoring and service meet international standards.

Modular channel combination configuration of Gwehr computer room

Configuration structure: precision power distribution system, server cabinet system, channel skylight gas automatic adjustment system, fire linkage system, automatic channel door system, access control system, automatic lighting system, atmosphere environment system, escape guidance system, sound and light alarm system, channel name LED screen editing system, emergency lighting system, backup power supply system,. and other thirteen systems, pay close attention to the power supply environment and temperature environment of high-density devices such as computing power, GPU servers, etc., to solve the unstable challenges brought by high-density computing.
