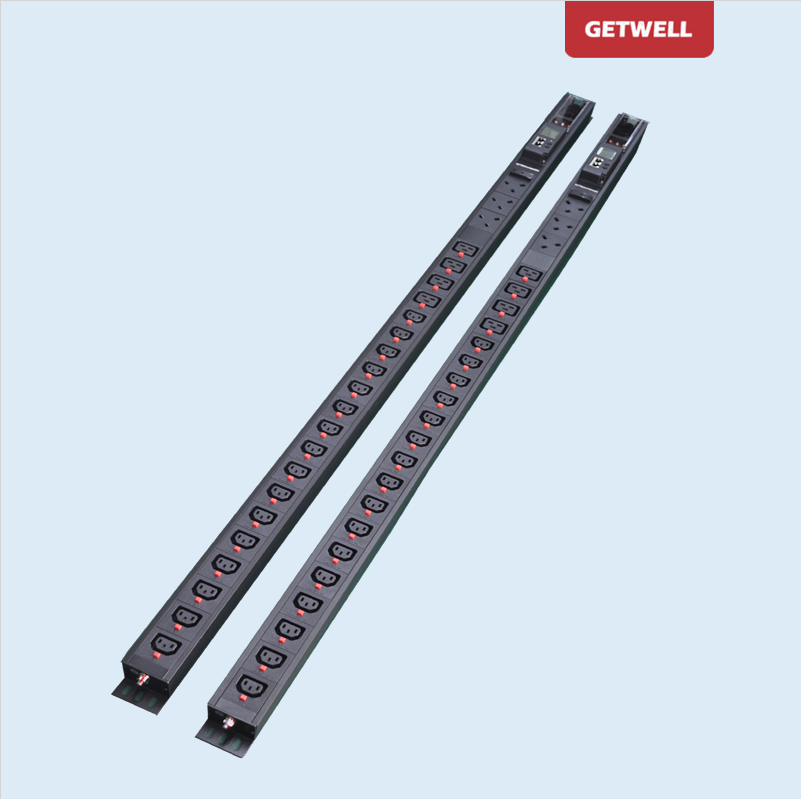

Configuration: Vertical-mounted 32A input PDU with junction box, pluggable smart 485 monitoring communication meter head, power indicator, 16× C13 outputs + 4× C19 outputs.

RS485 Communication Meter Head Functional Power Distribution Unit

The Functional PDU series power distribution units are suitable for power, communication, control, and other cabinet equipment, widely used in large/medium/small data centers, office scenarios, dispatch centers, control centers, and other applications.

The entire unit's housing is made of T5-strength environmentally friendly profiles with a black plastic spray finish. Internally, it adopts high-purity oxygen-free copper busbars with integrated automatic welding technology (low resistance, excellent electrical conductivity), ensuring the PDU products are aesthetically pleasing, structurally reliable, with controllable temperature rise, and compliant with RoHS standards.

Designed in accordance with IEC standards, the Functional PDU is used to supplement scenarios where standard PDUs have limited output sockets and functions, meeting customers' customized development needs: equipped with air switches to support high-power AC/DC input/output, and enabling independent control of single/multiple grouped sockets; supporting optional functional modules such as transparent open junction boxes, temperature detection modules, air/hydraulic switch components, ammeter modules, socket execution modules, lightning protection modules, fuses, etc.; compatible with application scenarios such as single-phase AC, three-phase AC, -48V DC, 240V high-voltage DC, 336V high-voltage DC, etc.; and supporting access to 8 types of sensors including temperature/humidity, door magnetism, water immersion, smoke detection, infrared, wind speed, etc.

A single Functional PDU can meet the power demand of all equipment in a cabinet.
