Product Overview:
GMA's full range of 600mm and 800mm server cabinets is a high-quality cabinet that stores 19-inch rack-mounted hardware (including servers, voice equipment, data, network, Internet, and power products) in line with industry standards (EIA-310-D), which is mainly used in high-demand professional medium and large data centers, and the product is fully compatible with the combination of micro-modules such as cold and hot aisles in modular computer rooms, with strong load capacity and static load of more than 1800kg. Design and manufacture BS15954, IEC197-2 and EIN4194 international industrial certification standards, the seismic test intensity of the product reaches 8-9 level.
High-performance cabinets with high compatibility
The new seven-fold G-frame equipment has 10% more load capacity! (※Static load up to 2500KG)
The opening rate of the front and rear doors of the equipment is increased by 10%! (※ ventilation rate 76%)
EIA-310-D standard, fully compatible with the installation of NVIDIA, IBM, HP, DELL, SUN, Ciseo, HUAWEI and other world-class brand servers and computing power servers.
Product Features:
GETWELL's state-of-the-art thermal management technology

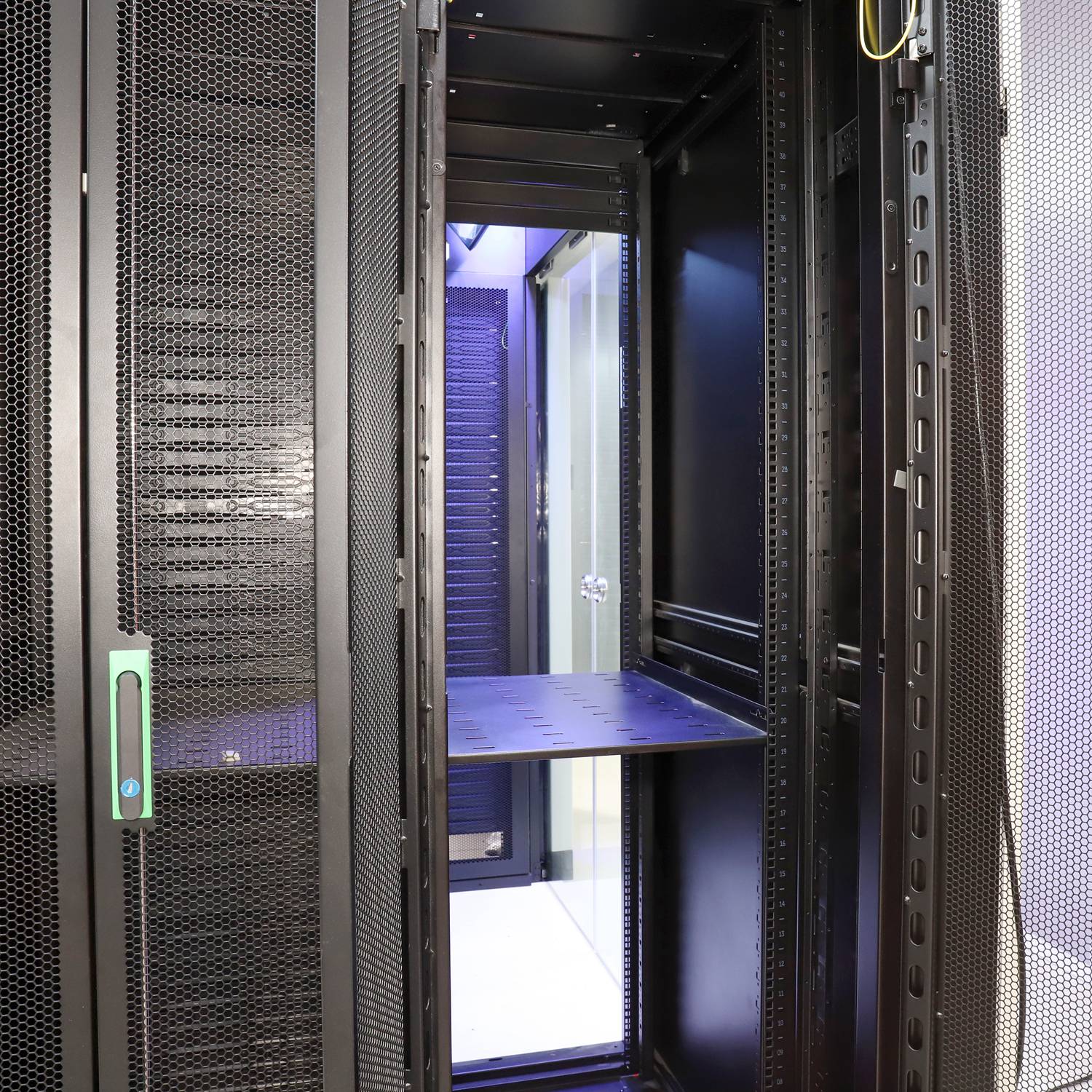

※ Fully ventilated front and rear doors are designed with high-density honeycomb "super mesh".
※ We have the industry's highest opening ratio of 76% of the ventilation area
※ Each U space has 20 in² of open space
※ Fully meet the demanding server heat dissipation needs
GETWELL cabinet advanced structural applications

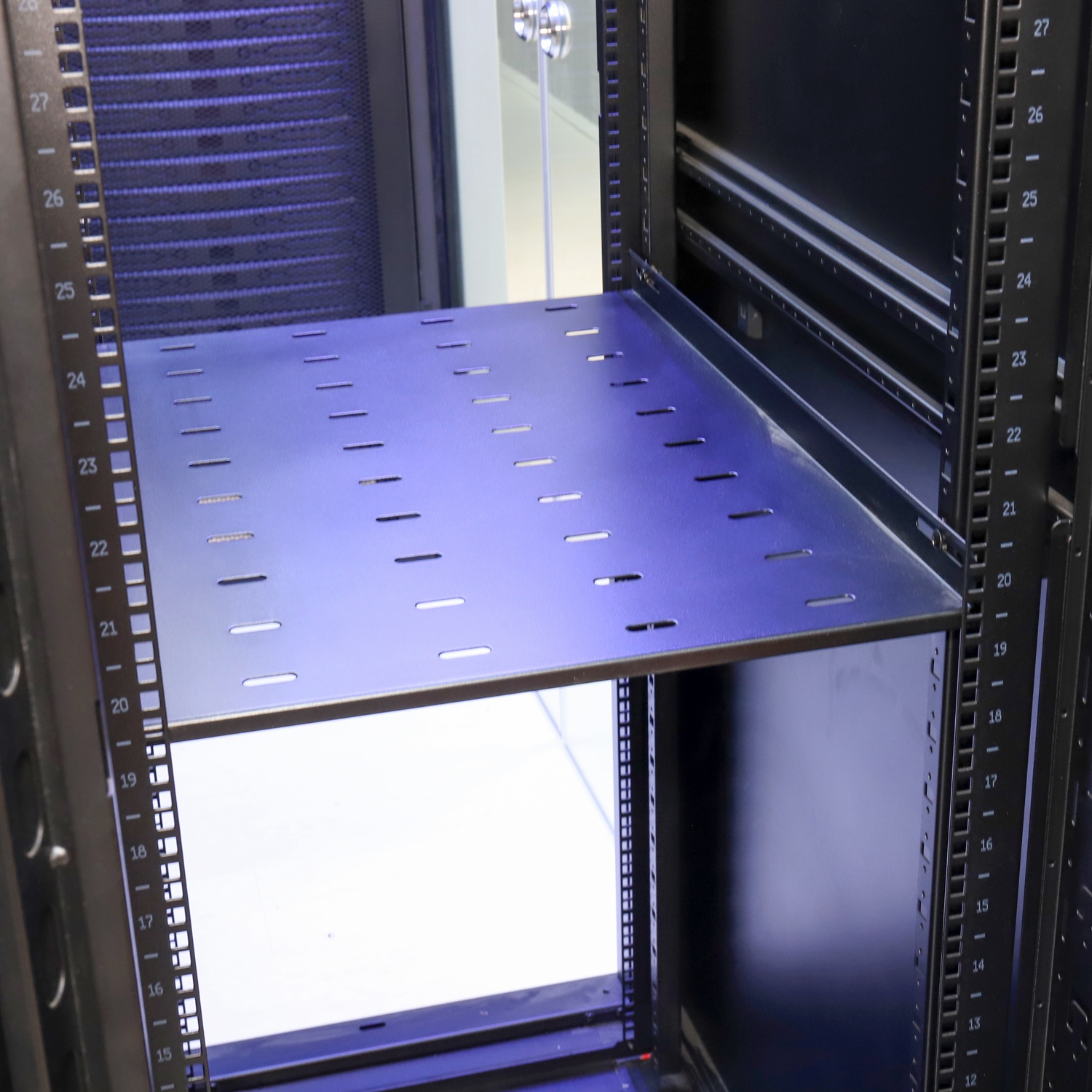

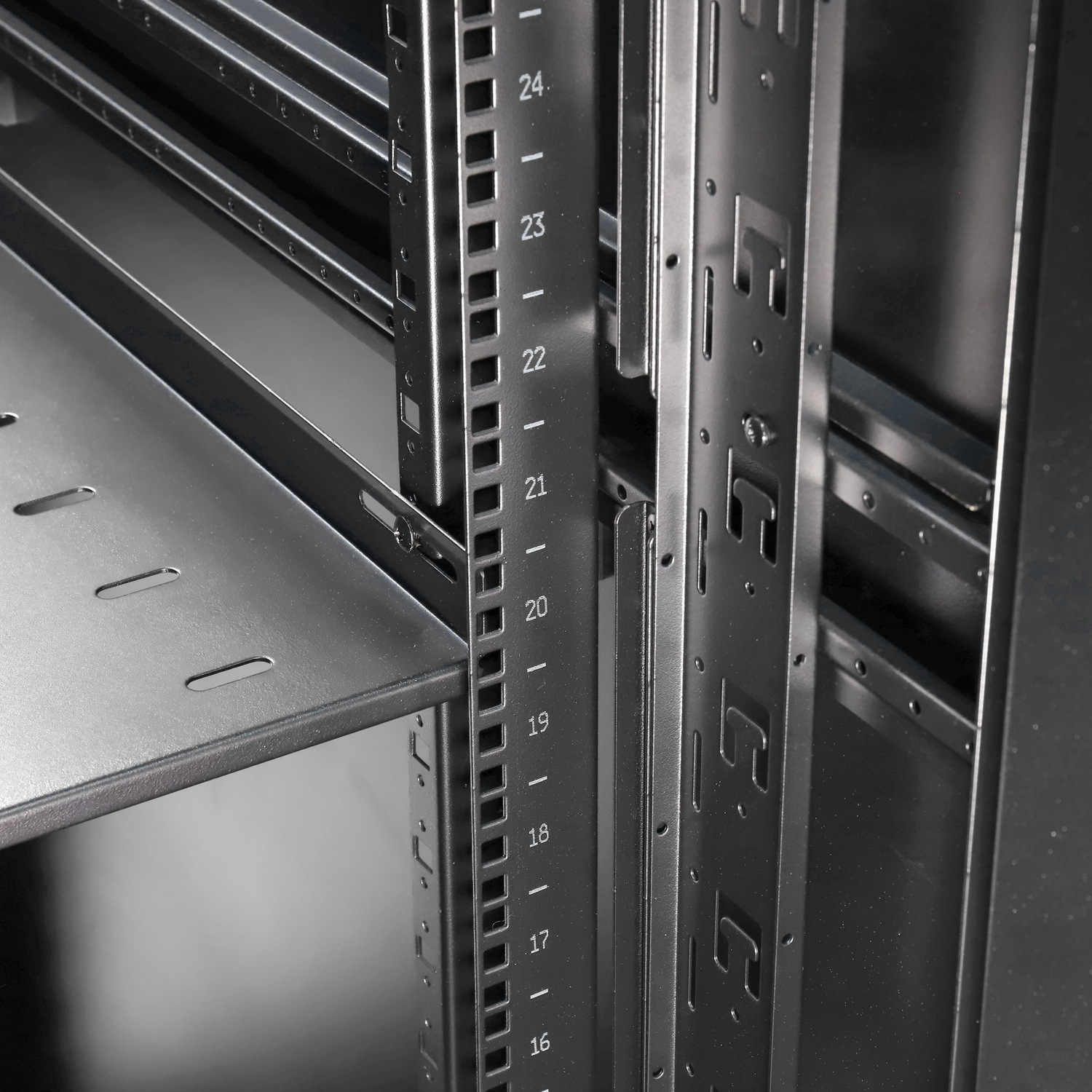

※The 19" standard column in the cabinet can be flexibly adjusted before and after
※The top and bottom of the cabinet are quick and detachable, which is easy to use

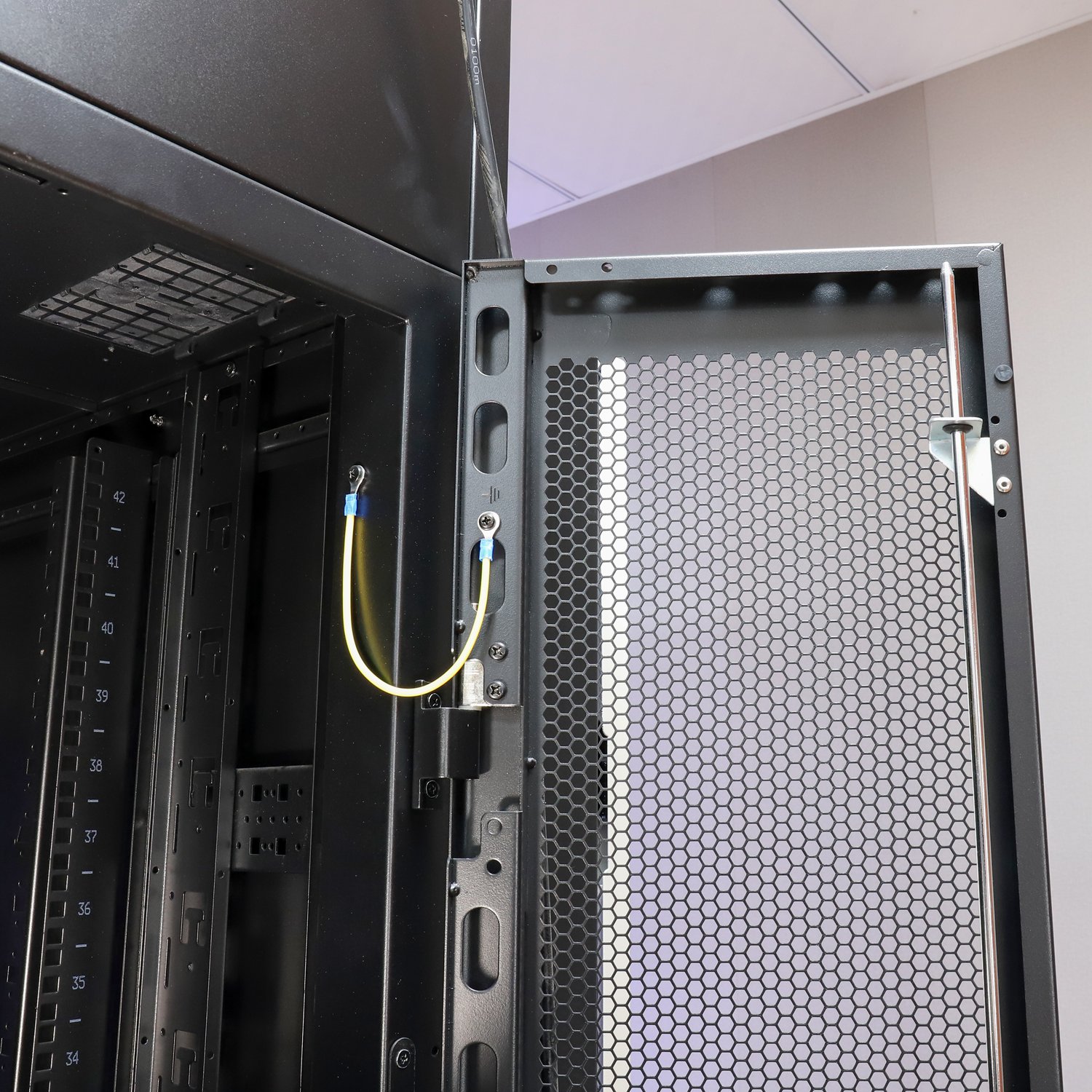

※The door body is super interchangeable, and the left and right doors can be interchanged at will
※Support the construction of a complete top wiring system to realize the first step of the complete micromodule
GETWELL cabinets perfect for modular constructions applications
※ The structure and technology of fast cabinet consolidation and high-precision cabinet frame perfectly surpass the imported quality
※ The roof of the cabinet built with modular hot and cold aisles is reserved for installation holes
※ Applications with diversified needs can be adjusted according to the application scenarios
GETWELL cabinet for complete cable management
※ Up to 12 cable entries to meet the needs of high-density wiring installation
※ The unique inlet seals the plastic parts and brush holes to achieve on-demand customization
※ The rear of the cabinet is oversized with a large cable management board, which supports quick hanging of dual PDUs
※ Support new finger cable management groove to achieve easy wiring needs
